3/4" Air Compressor

This high-quality 3/4" inline pressure regulator is designed for reliable performance in both commercial and home shop compressed air systems. Featuring a cast aluminum body, steel wall mounting bracket, and a clear 0–230 PSI gauge, this regulator offers precise pressure control in a compact, durable form.

The locking adjustment knob allows for quick, secure pressure changes—simply pull up to adjust and press down to lock. The regulator supports a wide pressure range from 7 to 225 PSI and includes a directional flow design with clearly marked IN and OUT ports. Two integrated 1/4" gauge ports allow flexibility in installation, with one plug included for the unused side.

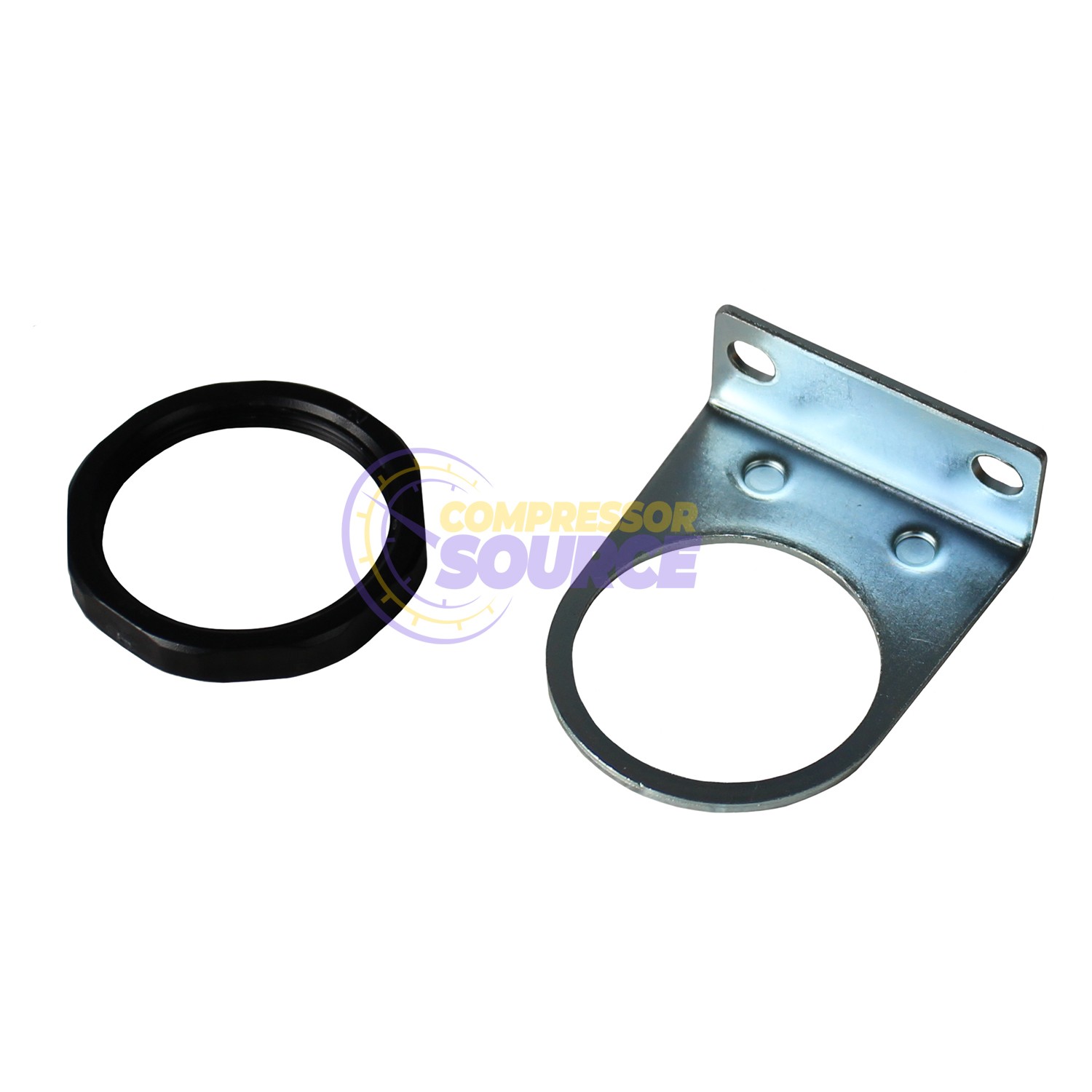

For stable mounting, the included bracket allows wall installation, or it can be mounted directly into a rigid air line system if preferred. Built to handle demanding environments, this unit offers smooth operation and consistent pressure control for a wide range of tools and setups.

Specifications:

• Inlet/Outlet Ports: 3/4" Female NPT (approx. 1" OD)
• Gauge Ports: 1/4" Female NPT (gauge and plug included)
• Adjustable Pressure Range: 7–225 PSI (Manual Drain Mode)
• Max Gauge Reading: 230 PSI / 16 Bar
• Max Operating Temperature: 140°F (60°C)
• Body Material: Aluminum with steel mounting bracket
• Dimensions: 5.25" H x 2.75" W x 2.75" D
• Mounting Options: Wall-mounted using bracket or pipe-mounted in rigid setups
• Flow Direction: Marked with IN/OUT arrows for correct installation

Whether you're running a full shop or managing airflow at a single workstation, this regulator gives you dependable control, easy setup, and long-term durability.
