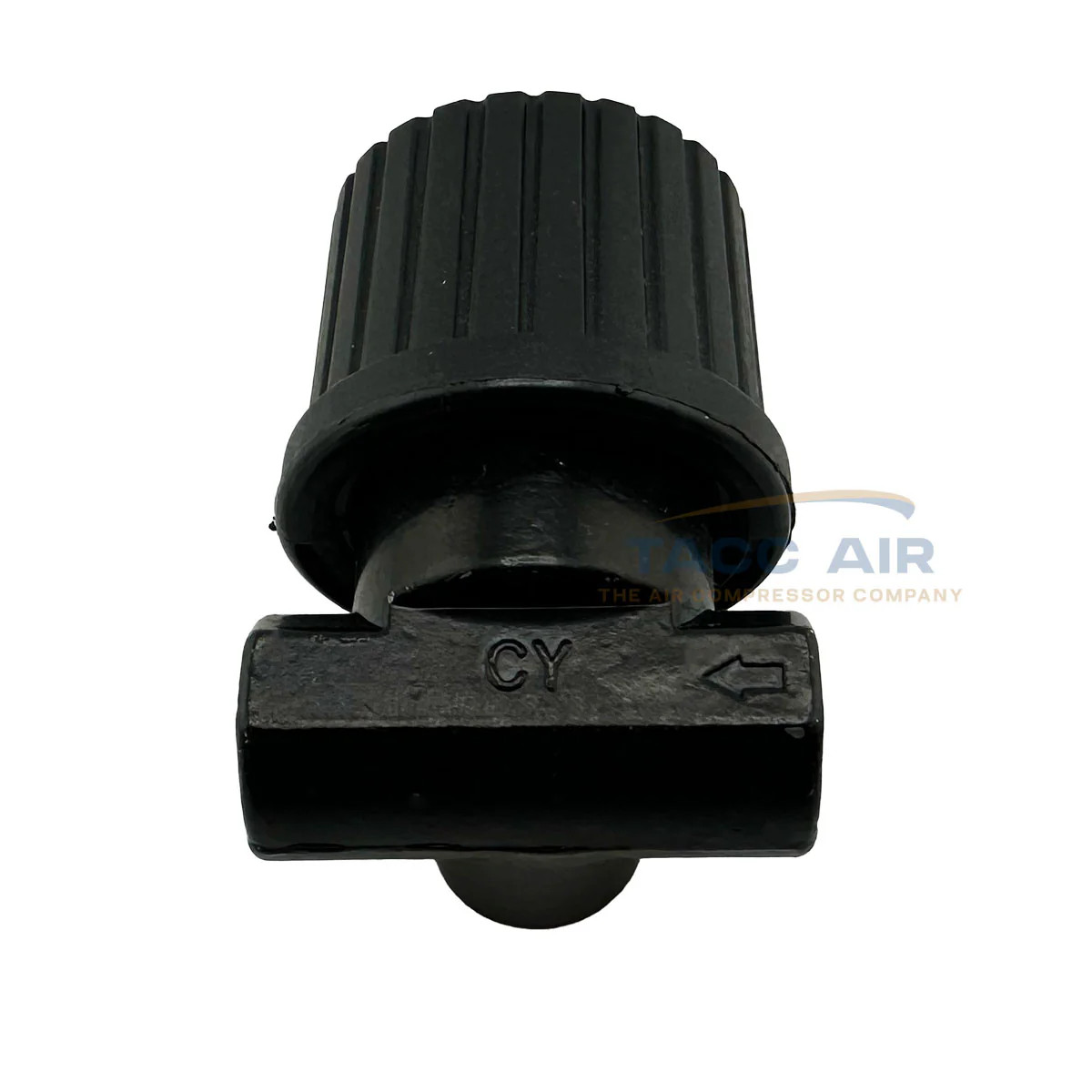

1/4" In-line Compressed Air Compressor

This high-quality 1/4" FNPT in-line air pressure regulator is the ideal aftermarket replacement for Campbell Hausfeld-style compact mini regulators. Commonly used on portable air compressors for years, this regulator is designed to work with various compressor brands, as long as the airflow is in the correct direction. The air flows from left to right when viewing the regulator from the side with the 1/8" FNPT gauge port.

For easy installation and operation, this regulator features a side-mounted 1/8" FNPT side port, perfect for connecting an air pressure gauge to monitor your system’s pressure. The manifold also has an arrow indicating the correct airflow direction, which is crucial to ensure proper functionality within your compressor setup.

With an adjustable pressure control knob on top, this regulator allows you to precisely control air pressure. Turning the knob clockwise increases pressure, while turning it counterclockwise decreases it. The clear labeling on the knob ensures ease of use.

Replaces a RE206202AV Regulator and more!

Product Features:

• Maximum Inlet Pressure: 250 PSI

• Regulated Pressure Range: Up to 135 PSI

• Max Operating Temperature: 150°F

• Side Port: 1/8" FNPT for air pressure gauge connection

• Air Flow Direction: Left to right (viewed from the side with the gauge port)

• Easy Pressure Adjustment: Turn the top knob clockwise to increase and counterclockwise to decrease pressure

• Compatible with Multiple Brands: Primarily designed as a replacement for Campbell Hausfeld, but works with other brands when airflow direction is correct

This durable and reliable regulator ensures your air compressor performs efficiently, allowing you to fine-tune air pressure to meet the needs of your various pneumatic tools and applications.

At Tacc Air, we're always here to help! With over 20 years of experience, we take pride in offering top-notch customer service and expert guidance. Feel free to reach out to us through the eBay message system for any product support or questions – we're ready and happy to assist you every step of the way!

-Ships From USA-
